Sonnet - 'Echo 11 Thunderbolt 4 Dock'

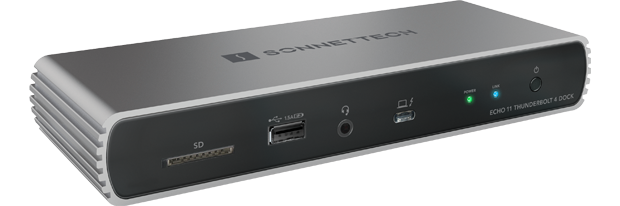

Sonnet Echo 11 Thunderbolt 4 Dock

UNIVERSAL THUNDERBOLT 4 DOCKING STATIONCompatible with all Thunderbolt 4 computers, all M1 Macs, and all Thunderbolt 3 Macs; also compatible with late-model Thunderbolt 3 Windows computers (see COMPATIBILITY PDF).

Thunderbolt 4

Sonnet Echo 11 Thunderbolt 4 Dock

BUILT FOR TODAY, DESIGNED FOR TOMORROWAll the connections you expect from a Thunderbolt™ dock plus the Thunderbolt hub you've always wanted. With this extraordinary dock, a single cable connects your laptop to your digital world. Sonnet's Echo™ 11 Thunderbolt 4 Dock – the universal docking station for today and tomorrow.

Sonnet Echo 11 Thunderbolt 4 Dock

DIRECTLY ATTACH THREE THUNDERBOLT PERIPHERALS– and daisy chain up to a total of 5 devices

Sonnet Echo 11 Thunderbolt 4 Dock

ATTACH THREE
USB DEVICES

Sonnet Echo 11 Thunderbolt 4 Dock

CONNECT UP TO TWO 5K DISPLAYS; OR A SINGLE DISPLAY UP TO 8K!

Sonnet Echo 11 Thunderbolt 4 Dock

CONNECT AND CHARGE YOUR LAPTOP AT UP TO 90W POWER DELIVERY

Sonnet Echo 11 Thunderbolt 4 Dock

LINK TO A GIGABIT ETHERNET NETWORK

Sonnet Echo 11 Thunderbolt 4 Dock

PLUG IN YOUR
HEADSET

Sonnet Echo 11 Thunderbolt 4 Dock

CHARGE YOUR
PHONE

Sonnet Echo 11 Thunderbolt 4 Dock

READ YOUR
SD CARDS

90W of Charging Power

CONNECT TO YOUR PERIPHERALS AND POWER YOUR COMPUTER WITH ONE CABLEPlug in your monitor(s), Thunderbolt devices, USB peripherals, and Ethernet cable. Then connect them all with a single Thunderbolt cable from the dock to your computer. The Echo 11 Thunderbolt 4 Dock will even power your laptop with up to 90W of charging power. When it is time to leave, just unplug the Thunderbolt cable, grab your laptop, and go.

Turn One Thunderbolt Port into Three

Sonnet Echo 11 Thunderbolt 4 Dock

TRULY UNIVERSAL CONNECTIVITY FOR WORK AND PLAYThe Echo 11 Dock features four Thunderbolt 4 ports; one for connection/power to your computer, plus three to directly connect Thunderbolt peripheral devices (and daisy chain up to a total of 5 devices). The Thunderbolt ports also support USB4 and USB 3 peripherals. For connected peripherals using bus power, the Dock’s Thunderbolt peripheral ports provide 15W per port, supporting even the most demanding bus-powered Thunderbolt and USB peripherals.

VERSATILE THUNDERBOLT EXPANSIONPerfect for Mac® and Windows® computers, including Apple® M1 Macs with limited Thunderbolt ports. Connect the dock and create three separate independent Thunderbolt expansion chains. Add and disconnect devices from one chain without affecting the others.

Sonnet Echo 11 Thunderbolt 4 Dock

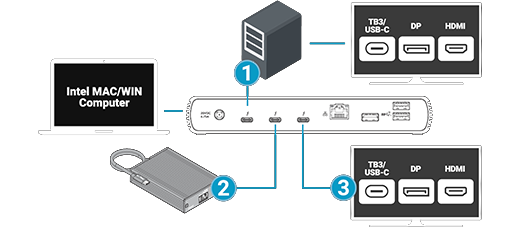

PORT 1Thunderbolt Desktop Raid Storage + Thunderbolt 3/USB-C or DisplayPort®/HDMI® (with Adapter) Monitor
PORT 2‍Sonnet Solo10G™ 10GbE Network Adapter
PORT 3Thunderbolt 3/USB-C or DisplayPort/HDMI (with Adapter) Monitor

10Gbps Thunderbolt 4

Sonnet Echo 11 Thunderbolt 4 Dock

POWERFUL 10GBPS USB PORTSThe Echo 11 Thunderbolt 4 Dock features three USB 3.2 Gen 2 (10Gbps) Type A ports on the back to support super fast USB NVMe SSDs at up to full speed. And unlike some other docks, the Echo 11 doesn’t skimp on power either—each port provides up to 7.5W, ensuring bus-powered devices will operate without fail.

Thunderbolt Certified

Sonnet Echo 11 Thunderbolt 4 Dock

THUNDERBOLT CERTIFIED FOR MAC AND WINDOWSThe Echo 11 Thunderbolt 4 Dock is certified for M1 and Thunderbolt 3 Macs with macOS® 11 (Big Sur). The Echo 11 is also supports Thunderbolt 4 and late-model Thunderbolt 3 (see Compatibility PDF) Windows computers.

Key Features

Sonnet Echo 11 Thunderbolt 4 Dock

ONE CABLE PERIPHERAL CONNECTIONInstant access – plug peripherals into the Echo 11 and connect your computer to the dock with the included Thunderbolt 4 cable.

Sonnet Echo 11 Thunderbolt 4 Dock

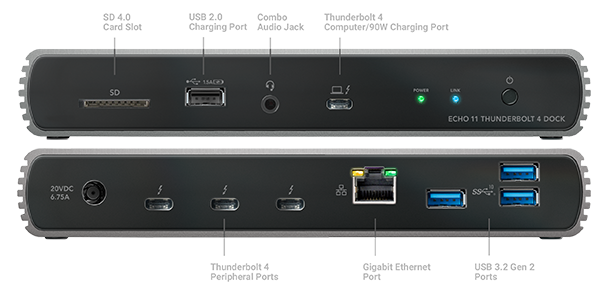

ELEVEN INTERFACESIncludes four Thunderbolt 4, three USB 3.2 Gen 2 Type A, one USB 2.0 Type A (charging), one RJ45 Gigabit Ethernet, and one 3.5 mm combo audio ports; one SD 4.0 card slot.

Sonnet Echo 11 Thunderbolt 4 Dock

3 THUNDERBOLT 4 PORTSConnects three Thunderbolt peripherals directly (with support for daisy chaining additional peripherals). Also supports USB4 and USB 3 devices.

Sonnet Echo 11 Thunderbolt 4 Dock

POWERFUL 10GBPS USBThree USB 3.2 Gen 2 ports provide up to 7.5W of power each, supporting super fast USB NVMe SSDs at up to full speed.

Sonnet Echo 11 Thunderbolt 4 Dock

SUPPORT FOR 4K, 5K, 6K AND 8K
@60HZ DISPLAYS
Depending on your computer, supports up to two 5K displays or a single 4K, 5K, 6K, or 8K display (see Compatibility PDF).

Sonnet Echo 11 Thunderbolt 4 Dock

MANY DISPLAY INTERFACES SUPPORTEDConnect Thunderbolt 3 and USB-C displays directly. Supports HDMI, DP, DVI, and other displays with a Thunderbolt 3 compatible adapter (sold separately).

Sonnet Echo 11 Thunderbolt 4 Dock

CHARGE YOUR LAPTOPProvides up to 90W through the included Thunderbolt 4 cable to power and charge your laptop(2).

Sonnet Echo 11 Thunderbolt 4 Dock

USB 2.0 CHARGING PORTFront panel USB port charges an iOS device or other device that charges via USB.

Sonnet Echo 11 Thunderbolt 4 Dock

FAST SD CARD SLOTCompatible with SD™, SDHC™, and SDXC™ memory cards; supports 320 MB/s read speeds with UHS-II SDXC cards.

Sonnet Echo 11 Thunderbolt 4 Dock

APPLE M1 COMPATIBLESupports all Apple M1 Mac computers.

Sonnet Echo 11 Thunderbolt 4 Dock

INTEL® MAC COMPATIBLESupports all Thunderbolt 3 Mac computers.

Sonnet Echo 11 Thunderbolt 4 Dock

INTEL WINDOWS COMPATIBLESupports all Thunderbolt 4 and late-model Thunderbolt 3 Windows computers
(see COMPATIBILITY PDF).
