Sonnet - 'Echo Dual NVMe Thunderbolt Dock'

ADD UP TO 16TB OF SSD STORAGEMass SSD storage meets desktop dock convenience. Dual NVMe slots support internal high performance storage expansion*. Transfer and access data in seconds, and effortlessly store large files and media libraries. Convenient, fast peripheral ports provide connectivity and charging for your Thunderbolt and USB devices.

INTERNAL SSD EXPANSIONAdd your own high performance M.2 NVMe SSDs

FOUR 10GBPS USB CHARGING PORTSUSB type-C and type A ports power and charge your devices

THUNDERBOLT DAISY-CHAININGAttach up to five daisy-chained Thunderbolt devices

SUPPORTS UP TO A 5K DISPLAYMaximise the utilisation of one computer Thunderbolt port
MAC® | WINDOWS® | IPAD PRO®Compatible with all Thunderbolt™ 4 computers, all M1, M1 Pro, M1 Max Macs, all Thunderbolt 3 Mac and Windows computers, and iPad Pro tablets with a Thunderbolt port
* SSDs sold separately
Thunderbolt 4 Compatible

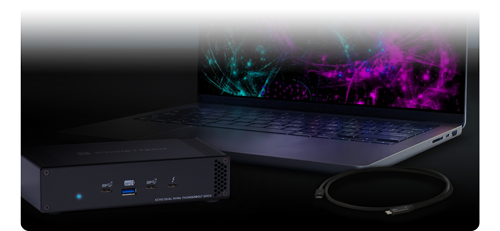

CONNECT PERIPHERALS TO YOUR COMPUTER WITH ONE CABLEPlug in your USB peripherals, Thunderbolt™ devices, and a monitor, and then connect them all with a single Thunderbolt cable from the Echo™ Dual NVMe Thunderbolt Dock to your computer. When it is time to leave, just unplug the Thunderbolt cable, grab your laptop, and go.
Fast & Reliable Connections

ADD UP TO 16TB OF SSD STORAGE INSIDEThe Echo Dual NVMe Thunderbolt Dock features two M.2 NVMe PCIe SSD slots, enabling you to easily install high performance M.2 NVMe SSDs (sold separately) inside. Because installed SSDs interface with the dock’s Thunderbolt controller, they utilize its bandwidth to deliver the performance of a portable Thunderbolt SSD, but are tucked away neatly within the dock.

ALL YOUR MEDIA IN ONE PLACEWant to know which NVMe SSDs work with Sonnet’s Echo Dual NMVE Thunderbolt Dock? View our comprehensive compatibility document.
NVME SSD COMPATIBILITY PDF
UP TO 6 Images with small descriptions in a row
FAST SINGLE SSD DATA TRANSFERS. GREAT RAID 0 PERFORMANCE.Single SSDs installed in the Echo Dual NVMe Thunderbolt Dock can each achieve sustained data transfers of up to 1500 MB/s. Configured as a RAID 0 set for even greater performance, data transfers up to 3000 MB/s are possible. Start with one SSD, and add any size SSD later without needing to format the first one.


Connect Thunderbolt Peripherals

CONVENIENT FRONT PANEL THUNDERBOLT PERIPHERAL PORTThe Echo Dual NVMe Thunderbolt Dock includes two 40Gbps Thunderbolt ports; one for connection to your computer, the other to daisy chain up to five additional Thunderbolt peripheral devices plus a display. The Thunderbolt peripheral port also offers 10Gbps USB 3.2 Gen 2 support, meaning you can connect another USB device using the proper cable or adapter. The dock’s Thunderbolt peripheral port provides up to 15W, supporting even the most demanding bus-powered Thunderbolt devices.
Peripheral Power

POWERFUL 10GBPS USB PORTSThe Echo Dual NVMe Thunderbolt Dock features four versatile USB 3.2 Gen 2 (10Gbps) ports (two Type-C plus two Type A) that support super-fast USB NVMe SSDs at full speed. Each port delivers up to 7.5W to ensure connected bus-powered devices operate without fail, and may be used to charge your iPhone®, iPad®, or other device that charges via USB.
Key Features

TWO M.2 NVME SSD SOCKETSAdd up to 16TB of storage inside (SSDs sold separately); achieve data transfer speeds up to 3000 MB/s (SSDs configured as RAID 0 set).

CONNECTS TO YOUR PERIPHERALS
WITH ONE CABLEPlug in peripherals to the dock with their cables, and then connect your computer to the dock with the included Thunderbolt cable for instant access.

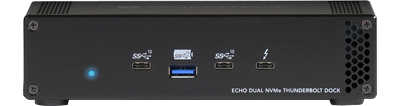

FRONT PANEL THUNDERBOLT PORT
FOR PERIPHERALSConnects one Thunderbolt peripheral directly and supports daisy-chaining of up to five Thunderbolt devices. Also supports USB 4 and USB 3 peripherals.

POWERFUL 10GBPS USB PORTSFour USB 3.2 Gen 2 ports provide up to 7.5W of power each for bus-powered peripherals, and for charging of devices.

QUIET, EFFECTIVE COOLINGTemperature-controlled, variable-speed fan automatically and quietly cools the dock and any installed SSDs.

MACOS BOOT SUPPORTSupports booting from a single (non-RAIDed) SSD.

APPLE PRO DISPLAY XDR SUPPORTEDConnect a Pro Display XDR, or a 5K or lower resolution display directly to the Thunderbolt peripheral port or at the end of the Thunderbolt device chain.

SEVERAL DISPLAY TYPES SUPPORTEDConnect a Thunderbolt or USB-C display directly. Supports an HDMI or DisplayPort display with a Thunderbolt-compatible adapter (sold separately).

APPLE M1 SERIES COMPATIBLESupports all Apple® M1, M1 Pro, and M1 Max Mac computers.

INTEL MAC COMPATIBLESupports all Thunderbolt 3 Mac computers running macOS® 10.12.6+.

INTEL WINDOWS COMPATIBLESupports all Thunderbolt 4 and Thunderbolt 3 Windows computers.

APPLE M1 IPAD PRO COMPATIBLESupports all iPad Pro tablets with a Thunderbolt port.
